Finned Tube Heaters

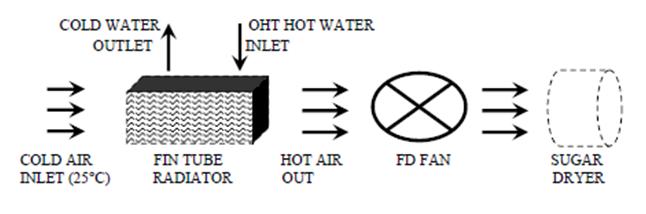

Finned Tube Heaters are used for heating the air required for Sugar drying by using hot water. Conventionally for air heating, tubular heat exchangers are used which require steam of 7kgf/cm2 as heating medium. But, EES supplied Finned Tube heaters utilizes the heat of hot water for air heating thereby completely eliminating the steam requirement.
Finned tube heater can be employed for cooling or heating of air or other gases which flow in a duct or cooling of water and other liquids using air. EES supplied Finned Tube Heater is provided with Aluminum extruded finned tubes. The fins of the tubes are mechanically bonded with base tube thereby eliminating air gap. This results in excellent heat transfer and increased heat transfer area for a given size. Further, the optimally designed Finned Tube Heater gives a high efficiency at lowest possible cost and elimination of steam requirement for heating.
EES supplied Finned Tube Heater operates at low approach of 5-7oC giving a stable air temperature at the outlet. A specially designed Filter is provided at the air inlet of the heater for dusty environment as that of Sugar Grading area. The filter is of robust design and can be periodically cleaned for a trouble free operation of the heater.
Finned Tube Heaters are used in the following industries:
- Food processing industries
- Textile industries
- Sugar Industries
- Drier industries
- Cement plant industries
- High heat transfer coefficient
- Low Temperature approach of 5-7 °C
- Compact and robust design
- Easy to clean with a high pressure water jet without deforming the fins
- 100% fin-to-tube bond providing exceptional efficiency and longevity
- Excellent corrosion protection on the base tube
- Cost effective and reliable design
