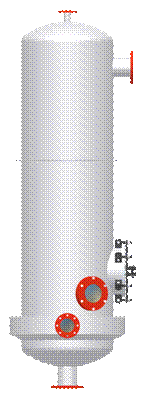

Direct Contact Heaters

EES Direct Contact Heater is simple but efficient in design, having no moving parts. Internals are designed and arranged in a manner for fast and continuous heating.

EES Direct Contact Heater has high heating efficiency thereby a relatively small, lightweight size can be used to deliver a large supply of heated liquid. Heat transfer in direct contact heaters is better than shell and tube heaters because heat transfer resistances like film, fouling and wall, are not present. Further, EES Direct Contact Heater has no maintenance requirement compared to costly shut-downs or at-least periodic maintenance required to clean tube bundles in shell and tube heat exchangers. Thus, EES supplied Direct Contact Heater is an ideal cost optimized and efficient solution for Juice Heating.

By using Direct Contact Heaters, it is possible to use lower pressure vapors for heating thereby enhancing the steam economy of the plant.

EES Direct Contact Heater has Stainless Steel construction for long life and trouble free operation. A quick opening manway is provided at an easily accessible location for Inspection.

Types Of Direct Contacts Juice Heaters
  • Raw Juice Heater
  • Sulphited/Defecated Juice Heater
  • Syrup/Melt Heater
  • Clear Juice Heater
Advantages
  • 0 – 5°C temperature approach
  • Operates on lower pressure vapours
  • Lower piping and valves requirements
  • Low pumping power requirement
  • Compact in size and light in weight
  • Better steam economy
  • Stainless steel construction
  • Variable applications vacuum or pressure
  • Simple to operate
  • No periodical cleaning required
